Verfügbarkeit: Nicht auf Lager
Artikelnummer: PTK-5150
Hersteller: ProTek RC
$47.24 (CAD)

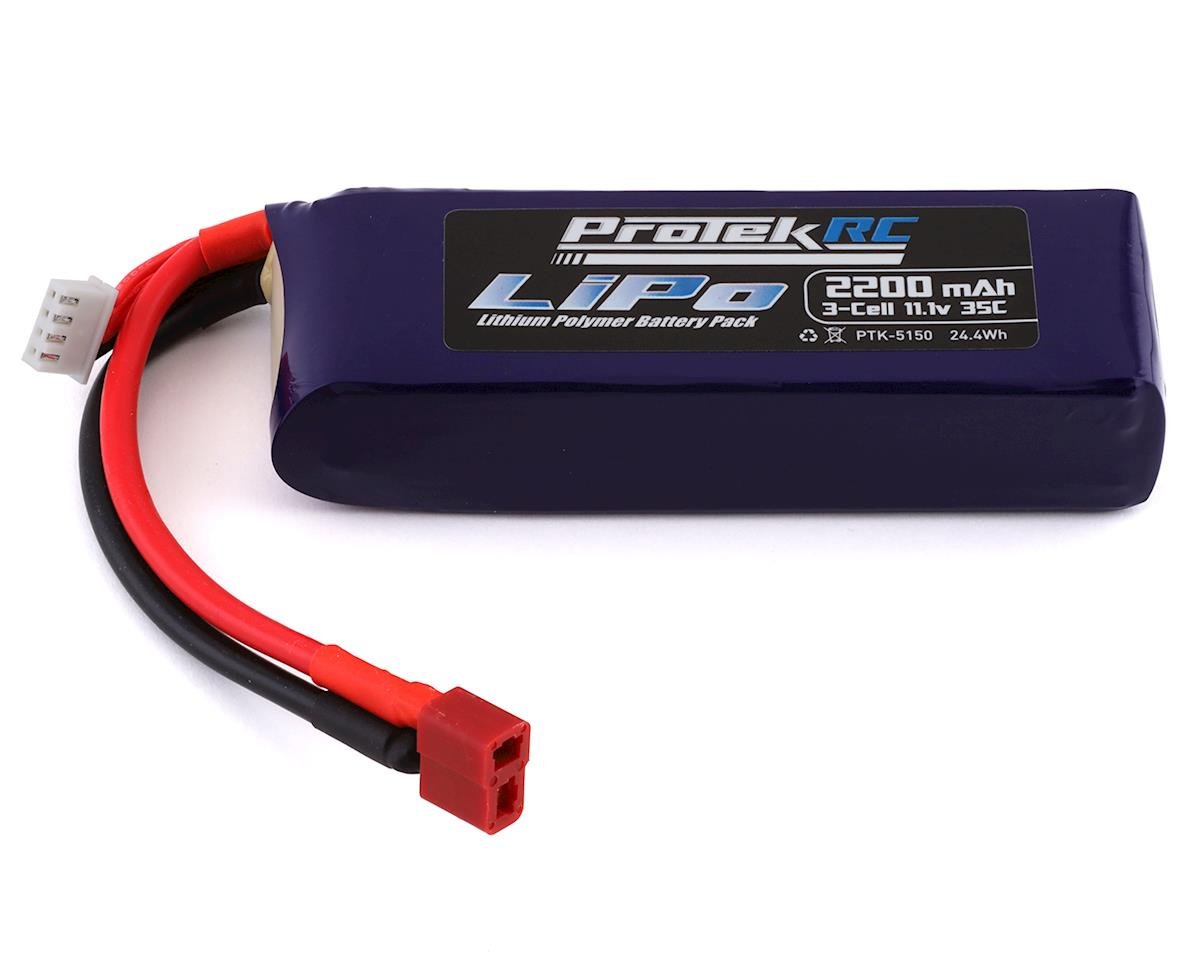

This is the ProTek R/C "Supreme Power" 3S 2200mAh, 35C Lithium Polymer battery pack. This lightweight 35C Li-Poly battery pack was developed specifically as a high quality power source for the ProTek Blue Flame engine heater (PTK-4050). Plus, this light weight battery pack delivers true 35C discharge and 2200mAh capacity, and features a T-Style connector installed on 12awg wire for an ultra low resistance connection, with a 4-pin XH type balance connector, making it an excellent option for compatible helicopters and airplanes!



Unlike most other Lithium Polymer batteries, these batteries can be charged at up to 2 times the rated current, or 2C! If your charger is capable, you can charge these batteries at 4.4A!

View Manual Icon small Warranty Info Icon small





Battery ModelSupreme Power 35C
Application
Blue Flame (PTK-4050)
TypeLithium Polymer
Capacity2200mAh
Voltage11.1V nominal
Connector Type
T-Style
Balance Connector4-Pin XH
Number of Cells3 Cell
Configuration3S1P
Dimensions (WxLxH)34.8 x 110 x 23mm
Maximum Charge Rate2C (4.4A)
Continuous Discharge35C (77A)
Watt Hour
24.4Wh
Weight179g



Includes:

  • (1) ProTek R/C Battery w/T-Style Lead

IMPORTANT:

1) DO NOT leave the battery in your model when charging
2) DO NOT leave unattended when charging
3) ALWAYS balance charge the battery
4) ALWAYS use a LiPo charging bag
5) YOU MUST use a Li-Poly specific charger to charge the pack (NiMH or NiCD only chargers WILL NOT WORK!)
6) YOU MUST not over discharge the Li-Poly battery pack
7) READ & UNDERSTAND the instructions carefully before operating this battery

NOTE: When using high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in over heated batteries. Discharging capacity can't exceed 80% of the max capacity of the pack after full charging to ensure a good cycle performance. It is recommended to fully charge a brand new battery before using and only discharge the battery 50% for first 5 cycles. Always monitor race time and/or set a low voltage warning on ESC (End voltage cannot be lower than 3.2v per cell) Do not use the battery that has too low a voltage.

Do not expose batteries to sunshine or store/charge batteries at the temperature above 35°C or in a closed car. The high temperature environment could cause damage to the pack or make it burst. If the battery becomes hot while fast charging, high current discharging or racing, do not charge the battery until it has cooled completely. Wait about 20 mins, then inspect prior to recharging.
