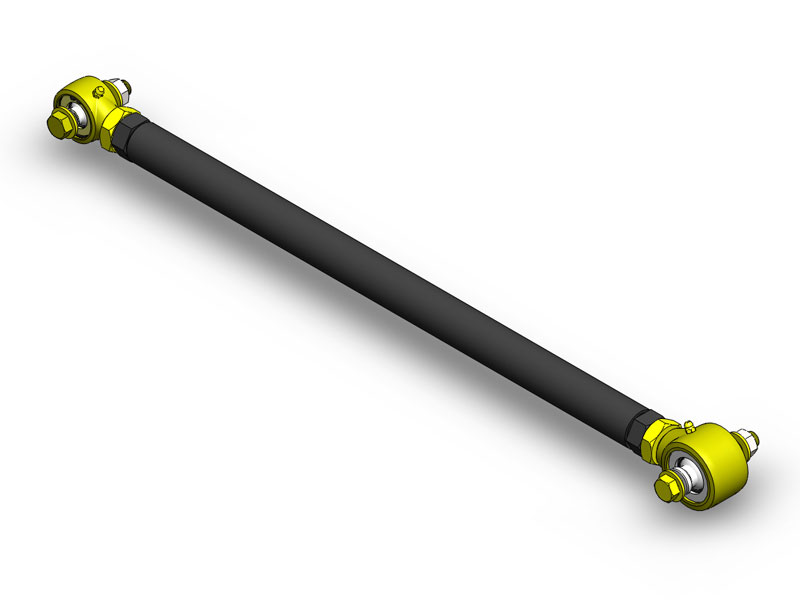

Custom Front Adjustable Track Bar W/Forged JJ 1.6 Width Lower Clayton Off Road

This product ships from our Edmonton Warehouse. Drop-Ship is available for US customers.
Verfügbarkeit: Kein Lagerbestand - wird nachgeliefert, sobald wieder Bestand verfügbar ist.
Artikelnummer: COR-4500340
$487.92 (CAD)

Our custom builder trackbar is unfinished so you can make the final cut, weld in the tube insert and then fine tune your custom trackbar with the johnny joints.Designed to be used with our new high steer system, using 1/4 brackets at both ends. Axle end is a forged johnny joint with a 1.6 Inch width and 9/16s thru bolt. Frame side is a 2.5 Inch forged johnny joint with a 2 5/8s width and 9/16s thru bolt. Tubing is 1.5 Inch, .120 wall DOM tubing.

Center to center unfinished tube length = 24 Inch

Custom application, cut down to desired finish length and weld in 1 tube insert.

With 24 Inch tubeCenter to Center Min = 29-13/16 Inch, Max = 31-11/16 Inch

Our custom builder trackbar is unfinished so you can make the final cut, weld in the tube insert and then fine tune your custom trackbar with the johnny joints.Designed to be used with our new high steer system, using 1/4 brackets at both ends. Axle end is a forged johnny joint with a 1.6 Inch width and 9/16s thru bolt. Frame side is a 2.5 Inch forged johnny joint with a 2 5/8s width and 9/16s thru bolt. Tubing is 1.5 Inch, .120 wall DOM tubing.

Center to center unfinished tube length = 24 Inch

Custom application, cut down to desired finish length and weld in 1 tube insert.

With 24 Inch tubeCenter to Center Min = 29-13/16 Inch, Max = 31-11/16 Inch

*
*
*
Checkout www.Clayton-Offroad.com for full installation instructions

Need this item installed? Let us know and we'll get you a quote.
