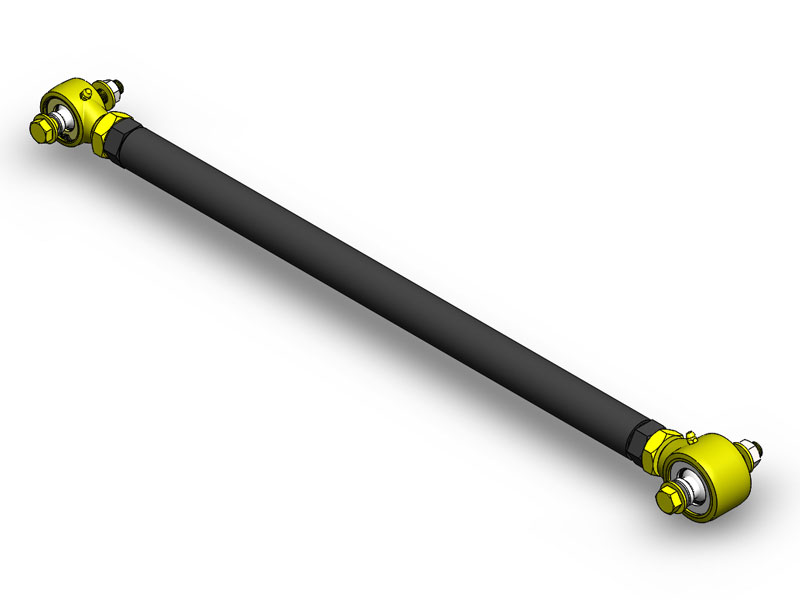

Custom Front Adjustable Track Bar W/Forged JJ 2.0 Width Lower Clayton Off Road

This price does NOT include shipping from Clayton to us. Contact us for a quote; complete lift kits typically ship to us for FREE. We do offer drop-ship to border towns for free shippng and NOT GST!

Verfügbarkeit: Nicht mehr verfügbar - Ware wird erwartet und der Vorgang wird weiterverarbeitet, wenn diese wieder an Lager ist (ETA: 2+ Weeks).

Artikelnummer: COR-4500300

$485.11 (CAD)

Menge:

Our custom builder trackbar is unfinished so you can make the final cut, weld in the tube insert and then fine tune your custom trackbar with the johnny joints.Designed to be used with our new high steer system, using 1/4 brackets at both ends. Axle end is a forged johnny joint with a 2.0 Inch width and 1/2 Inch thru bolt. Frame side is a 2.5 Inch forged johnny joint with a 2 5/8s width and 9/16s thru bolt. Tubing is 1.5 Inch, .120 wall DOM tubing.

Center to center unfinished tube length = 24 Inch
Custom application, cut down to desired finish length and weld in 1 tube insert.
With 24 Inch tubeCenter to Center Min = 29-13/16 Inch, Max = 35-11/16 Inch

Overview
Contact Us
Installation

Ihr Name *

Ihre E-Mail *

Anfrage *

Checkout www.Clayton-Offroad.com for full installation instructions

Need this item installed? Let us know and we'll get you a quote.
