Jeep Wrangler Front Long Arm Upgrade Kit 07-18 JK Clayton Off Road

This product ships from our Edmonton Warehouse. Drop-Ship is available for US customers.
Verfügbarkeit: Kein Lagerbestand - wird nachgeliefert, sobald wieder Bestand verfügbar ist.
Artikelnummer: COR-4808122
$2,344.54 (CAD)

Clayton Off Road Inc. is known for building the ultimate in Jeep long arm kits and our new JK long arm kit is no exception. The lower arms use our tried and proven 2x2 1/4 wall square tubing and carry our lifetime warranty against bending or breaking. Another key feature with the new JK front long arm kit is our bolt-in 3 piece cross member. The cross member bolts into the OEM location and has pockets for the forged 2.5 inch johnny joints which allows for maximum ground clearance.

This cross member can be simply bolted in, or it is also setup so it can be welded in for the more abusive drivers. Like all other Clayton Off Road cross members the center section is removable, making any transmission changes simple and can be done without touching any suspension arms.

This 3 piece cross member was designed using the latest 3D Solid Works program, CNC laser cut, and CNC bent from 3/16s for maximum strength and accuracy. This long arm upgrade kit would be a great addition to any lifted Jeep Wrangler JK. Just a few advantages include an improved ride quality, better handling, and maximum articulation for unmatched offroad performance.

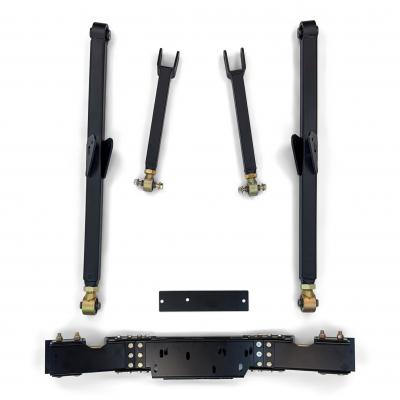

The entire kit is a bolt in application, however the OEM lower control arm brackets at the frame end will need to be cut off in order to clear the new longer lower arms. The kit includes the 3 piece cross member, long lower adjustable arms, short upper adjustable arms and necessary hardware.

Many of the pictures below arm prototype pictures. More up to date pictures will be added as soon as they become available. The cross member is e-coated, and the arms are powder coated.

Available for the 07-18 JK with 3 to 8 Inch of lift.

Note: 1. Exhaust modifications are necessary due to clearance. A loop delete and spacer is required. 2.Front CV Style Driveshaft is required

Clayton Off Road Inc. is known for building the ultimate in Jeep long arm kits and our new JK long arm kit is no exception. The lower arms use our tried and proven 2x2 1/4 wall square tubing and carry our lifetime warranty against bending or breaking. Another key feature with the new JK front long arm kit is our bolt-in 3 piece cross member. The cross member bolts into the OEM location and has pockets for the forged 2.5 inch johnny joints which allows for maximum ground clearance.

This cross member can be simply bolted in, or it is also setup so it can be welded in for the more abusive drivers. Like all other Clayton Off Road cross members the center section is removable, making any transmission changes simple and can be done without touching any suspension arms.

This 3 piece cross member was designed using the latest 3D Solid Works program, CNC laser cut, and CNC bent from 3/16s for maximum strength and accuracy. This long arm upgrade kit would be a great addition to any lifted Jeep Wrangler JK. Just a few advantages include an improved ride quality, better handling, and maximum articulation for unmatched offroad performance.

The entire kit is a bolt in application, however the OEM lower control arm brackets at the frame end will need to be cut off in order to clear the new longer lower arms. The kit includes the 3 piece cross member, long lower adjustable arms, short upper adjustable arms and necessary hardware.

Many of the pictures below arm prototype pictures. More up to date pictures will be added as soon as they become available. The cross member is e-coated, and the arms are powder coated.

Available for the 07-18 JK with 3 to 8 Inch of lift.

Note: 1. Exhaust modifications are necessary due to clearance. A loop delete and spacer is required. 2.Front CV Style Driveshaft is required

Fitment:
2007 - 2010 Jeep Wrangler X
2007 - 2017 Jeep Wrangler Unlimited Rubicon
2007 - 2017 Jeep Wrangler Rubicon
2007 - 2010 Jeep Wrangler Unlimited X
2007 - 2017 Jeep Wrangler Sahara
2007 - 2017 Jeep Wrangler Unlimited Sahara
2010 - 2017 Jeep Wrangler Unlimited Sport
2010 - 2017 Jeep Wrangler Sport
2011 - 2011 Jeep Wrangler 70th Anniversary
2011 - 2011 Jeep Wrangler Unlimited 70th Anniversary
2016 - 2016 Jeep Wrangler 75th Anniversary
2016 - 2016 Jeep Wrangler Sport S
2016 - 2016 Jeep Wrangler Unlimited Sport S
2016 - 2016 Jeep Wrangler Unlimited 75th Anniversary
2018 - 2018 Jeep Wrangler JK Unlimited Rubicon
2018 - 2018 Jeep Wrangler JK Sport
2018 - 2018 Jeep Wrangler JK Unlimited Sahara
2018 - 2018 Jeep Wrangler JK Sahara
2018 - 2018 Jeep Wrangler JK Unlimited Sport
2018 - 2018 Jeep Wrangler JK Rubicon
*
*
*
Checkout www.Clayton-Offroad.com for full installation instructions

Need this item installed? Let us know and we'll get you a quote.
